凹r铣刀

图片及说明为本厂所有，

无良抄袭下载翻版必究！

专业特殊、非标、异型、新产品、任意种类、形状、公差的超硬加工。

如有类似，可FAX地址，来电索取图片中的样品及相关样本资料供参考（只限小金额）

常年備存原材料、半成品、成品 2000萬 ~ 3000萬RMB周转的在庫品，依圖依樣現生產，具有極強的性價比……欢迎实地指导。

BW型齿：弧形齿（交替倾斜）

齿型为左右单斜弯平齿，是“B”型齿的改良设计，主要用于切锯较厚之异型材料和切锯抵受力较强，适用于一般的横切的锯机。

C型齿：三重齿修磨；粗和精加工齿

它的齿型设计为高低平梯齿型，前后齿的高低差距约0.15±0.3mm。前齿为双边斜型，后齿为平齿，它的切锯效率较高，并可助切锯工件时，减低所需锯切力度。

BR型齿：它是“B”型齿的最新改良设计，在齿顶部位开了精细切削槽约0.4mm，其作用为把切锯工件的废料再破碎，增加排出功率，使切锯功效比“BW”齿型更能增25％。

依图依样可生产不同齿型、齿数、角度、精度、材种的成型铣刀；外径与厚度公差，高可至±0.010mm。

极超微粒钻石钨钢，具有极高的耐磨耗性能，但抗冲击性能略差些。适用于各类要求极高耐磨耗性能材料的中低速轻切削加工。一般用于良好的工况、稳定的切削、优良的零件装夹及持续的轻型加工。相应一般钨钢，具有4～6倍以上的使用寿命。相应ISOK10～K25/P10~P25。

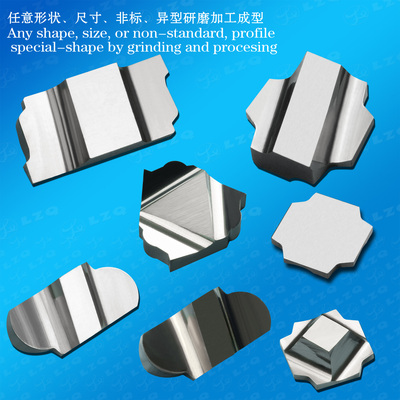

Super-hard processing of professional, special, non-standard, special shaped and new products with any kind, any shape and tolerance.

※If you have any similar inquiry, please fax us your address or call us to get samples in the photos and related catalogue for your reference (only a small amount is allowed).

※We keep around RMB 20～30 Million turnover stock articles such as raw material ,semi-products, finished products in ordinary year , we are capable to produce according to drawing or sample provided by customer, so as to present you a favorable cost-performance ratio…Welcome to visit our factory。

“BW” tooth: curved tooth (alternately beveled)Tooth profile is left and right single inclined bending flat tooth, the improved one based on “B” tooth, mainly applied to cut thicker material of abnormal profile, with stronger cutting resistance, applied for general cross-cutting saw.

“C” tooth: “HI-LO” tooth (three-tooth regrinding; rough and finish tooth machining)Its tooth profile is high and low ladder tooth profile. The difference between front and back tooth is 0.15±0.3mm. The front tooth is double-bevel, and the back tooth is flat. Its cutting efficiency is high, and can reduce cutting force when assisting in cutting saw.

“BR tooth: it is latest improved design of “B” tooth, with a fine cutting groove of about 0.4mm at the top of tooth. Its function is to re-break waste materials from cutting and sawing work pieces and to increase discharge rate, so that comparing with “BW” tooth, its cutting and sawing efficiency increases by 25%.

ASP60A :imported ultra high wear-resistant high-grade high cobalt powder steel, quenched:HRC70°±2°, with excellent wear resistance and impact resistance. Comparing with HSSE\HSS-AL and HSSCo, it has 4~8 times lifetime, and can guarantee uniformity and conformity rate of machined products. It is often applied in general equipment for machining various materials including Ni\Cr\Mo\Si\Ti) that are hard to machine like high alloy\heat-resistant alloy\cast iron of nickel-vanadium-titanium alloy\stainless steel. It is excellent machining tool before heat treatment. It has excellent high temperature machining and comprehensive performance, and allows higher cutting speed. The higher the hardness of machined materials, the more remarkable the effect. Because its roughness is not so good, it is not suitable for discontinuous cutting or for using under processing system of insufficient rigidity, otherwise, cutter will be hit or chipping will happen.
