槽铣刀

专业特殊、非标、异型、新产品、任意种类、形状、公差的超硬加工。

※ 有类似，可FAX地址，来电索取图片中的样品及相关样本资料供参考（只限小金额）

※ 年備存原材料、半成品、成品 2000萬 ~ 3000萬RMB周转的在庫品，依圖依樣現生產，具有極強的性價比……欢迎实地指导。

刃径：（微小型）φ0.10 mm-φ53.00mm（整体钨钢）、φ20.00mm-φ80.00mm(焊刃式).

公差：（标准及非标准）钻石钨钢类刃径公差高要求的可至±0.001mm(±1μm)的精度范围，柄径公差均为h6以上

螺旋角：0°、25°、30°、35°、45°、50°、55°、60°

冷硬加工取代磨削可提高精度,硬铣削取代研磨可提高效率

(高硬度钢加工用非涂层钻石钢刀具可替代TiALN涂层超微粒钨钢、陶瓷、CBN刀具切削后具有极佳的光洁度及较低的刀具成本).

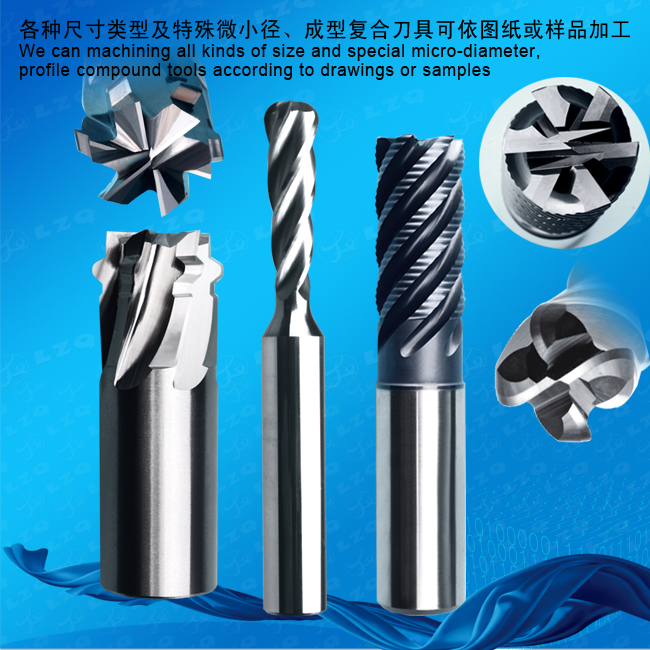

微小径和成型复合刀具可依图纸或样品加工

订货请注明: 名称(刃型)*刃数*刃径*刃长*柄径*总长*柄类*(斜度)*螺旋角*要求公差； 拟加工材料，加工类型[超精→精,半精→半粗,粗加工→强力(重)切削]

HSC铣刀

1、刀具刚性好，能进行高效率的加工。

2、通用型，高精度产品，表面粗糙度≤Ra0.15μm。

3、采用先进的强力高速数控磨床高精密成型磨削，故有完美的刃口品质及精密公差。

4、斜度、刃数（2～6刃）、柄类、螺旋角、刃径、刃长、柄径、总长等可依要求加工。

Slot mill

Super-hard processing of professional, special, non-standard, special shaped and new products with any kind, any shape and tolerance.

※If you have any similar inquiry, please fax us your address or call us to get samples in the photos and related catalogue for your reference (only a small amount is allowed).

※We keep around RMB 20～30 Million turnover stock articles such as raw material ,semi- products, finished products in ordinary year , we are capable to produce according to drawing or sample provided by customer, so as to present you a favorable cost-performance  ratio…Welcome to visit our factory。

MRll diameter: (miniature) φ0.10mm---φ53.00mm (solid tungsten steel), φ20.00mm--φ80.00mm (brazing)

Tolerance: (standard and non-standard) tolerance of flute diameter of diamond tungsten steel can be up to ±0.001mm (±1μm) high, and tolerance of holder diameter is more than h6.

Helical angle: 0°,25°,30°,35°,45°,50°,55°,60°

Cold-hard machining replacing grinding can improve precision, hard milling replacing grinding can improve efficiency。

(Non-coated diamond steel tooling for high hardness steel machining can replace TiALN coated ultra micro-grain carbide, ceramics. After cutting, CBN tooling has excellent smoothness and lower tooling cost.)

Miniature and profile compound tooling can be machined according to drawing or sample

When placing an order, please indicate: name (flute type) ＊ number of flute ＊ flute diameter ＊ flute length ＊ holder diameter ＊overall length＊type of shank＊ (inclination) ＊ helical angle ＊ required tolerance

Material to be machined, Type of machining，Super-finish→ finish, semi-finish→ semi-rough, rough machining→ power (heavy) cutting
