内窥镜

图片及说明为本厂所有，

无良抄袭下载翻版必究！

特性

应用领域:    用于关节镜内窥镜

材    料:   超防锈高硬度不锈钢,陶瓷,一般不锈钢

产品描述

LZQ是一家生产各种刨刀的OEM代工工厂，例如，内窥镜/关节镜刨刀 , 骨科钻针 , 取骨器 , 钻头，等等。我们也可以为客户生产成套手术工具。

  我们使用不锈钢和陶瓷材料。

  我们可以根据客户提供的任意图纸或者样品来生产任何刨刀，而且性价比很高。

各式俱全，直的和弯的刨刀和锉。

       LZQ生产的刨刀是由HRC54°+/- 2°的整体材料（SKH4B/SUS440c）  加工成型并对焊于SUS304L/ SUS316L的不锈钢管上。高质量, 超锋利硬化尖端。可更换成所有通用生产商的锉。

     各种尺寸可选：3.5, 4.2, 5.5, 6.5mm, 等。 LZQ也可以根据客户的任意设计来定做任意尺寸和齿形。

我们的刨刀&锉优势在于:很好的切割性能; 长的服务寿命和耐久性; 可重用性; 无金属磨损; 完美的耦合。

提供的好处:对于操作人员来说更方便; 增加手术治疗精准度; 节约耗材; 更短的手术时间

定制需注明：

1.上系列规格的总长度均可依要求定制

2.以上只图示刨刀头部位置的内外径尺寸(头部刃外径尺寸,可依选择组合及配合要求精研磨至所需的尺寸公差,以超高精密内外刀配合)

3.选好齿型（样本没有的齿型需批量才能定制或来图来样咨询）

4.注明所需整套的详细的内、外规格、总长度及精研磨的公差要求……

Endoscopy equipment

Characteristics

Application domain:   for arthroscopy endoscope

Material:  Super-high rust-resistant high-hardness stainless steel,

         ceramics, general stainless steel

Products Description

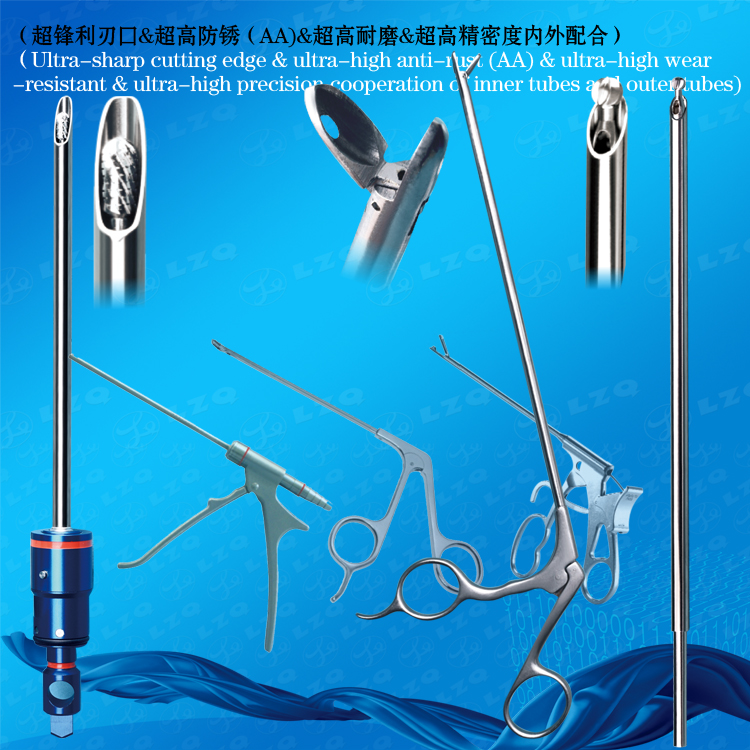

LZQ is an OEM factory for all kinds of shaver blades, such as Endoscopic/Arthroscopic Shaver blade , Bone Drill Point , Bone Fetcher, Drill Bit, ect.

  We use the material of stainless steel and ceramic.

  We are capable to produce any shaver blades according to drawings or samples provided by customer with a favorable cost-performance.

   Broad selection of straight and angled shaver blades and bursThe shaver blades from LZQ is made with HRC54° +/- 2° solid material(SKH4B/ SUS440C), they are processed into form and then was butt welded on the stainless steel tube of SUS304L/ SUS316L. High quality, extra sharp hardened tips. Replacement burs available for all common manufacturersAvailable in various sizes; 3.5, 4.2, 5.5, 6.5mm, ect. LZQ can customize any size and teeth shape according to your specific design. Our SHAVER BLADES & BURS are set apart by:Very good cutting properties; Long service life and durability; Reusability; No metal abrasion; Well-fitting couplingsThe benefits to you:    More convenience for operating personnel; Increased precision for surgical procedures; Savings with consumables; Shorter operation times

Remarks needed for customization:

The overall length of the series specifications above can be customized according to customers’ requirement.

This only shows the ID & OD of the shaver blade cutting edge position (Cutting edge OD will be according to customers' preferential combination, match up the requirement to finish grind to required tolerance, with ultra-high precision cooperation of inner tubes and outer tubes)

3.  Choose the tooth profile. (For tooth profile that is not in our catalog, we can customize according to customers' drawings or samples but only with batch qty)

4. Need to know the detailed specifications of outer tube and inner tube, such as diameter, total length and tolerance requirement of fine grinding.
