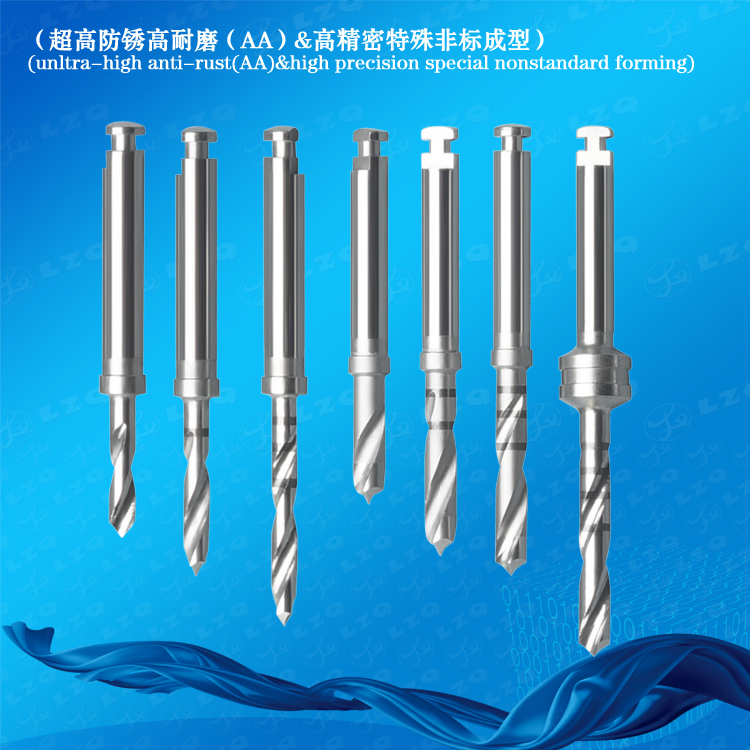

手术钻头

图片及说明为本厂所有，

无良抄袭下载翻版必究！

钻头电子样本P96

产品描述：

应用领域：  用于牙科种植

材    料：  超高防锈高耐磨不锈钢，陶瓷

    LZQ是一家生产各种牙科种植钻头的OEM代工工厂，例如，引导钻头, 成型钻,平行针, 压板, 先锋钻 , 克氏针 ，等等。我们也可以为客户生产成套手术工具。

    可依要求生产不同刃部材料类型（陶瓷类、钨钢类、超高防锈高级品不锈钢类(AA)、钛及钛合金类、常规标准防锈高耐磨不锈钢(A)......等系列）

刃部材料类型:

1.超高防锈不锈钢类(AA)(HRC54°±2°断面) (常规常备)

2.常规标准防锈高耐磨不锈钢类(A)(HRC45°~64°断面)

3.钛及钛合金类(HRC35°~42°)系列.

4.陶瓷类(HRA85°~94°)系列, (HRC67°~84°)系列.

5.钨钢类(HRA81°~94°)系列, (HRC60°~84°)系列.

  可超硬、超精研磨，任意的柄部类型、芯厚、容屑槽宽度、刃背方式、钻尖方式、内冷却孔方式、刃部结构、刃口角度、刃口锋利程度之要求，及高可至±0.003mm （3μm）的尺寸公差要求

    LZQ是一个优秀的高精密全精研磨医疗工具、刃具、治具、零配件、特殊新产品的代工企业，目前主要为国际一流品牌的供应商做代工，代工主要用户也均为医疗工具、治具的制造企业。因为长期从事于飞机、舰艇、汽车等精密配件生产用的非标准工模具、成型治具，超高防锈高硬度不锈钢、钨钢钎焊工夹具的生产加工，从而逐渐建立并不断完善先进综合的生产体系及各种精密技术生产加工能力，实现各类医疗工具、治具、配件产品的高精密、高度复杂、综合成型的几何加工，依图依样尺寸/公差/要求复合成型加工。可生产极为复杂、精密的形状。工具、刀具可以激光分段、不同颜色的色圈、不同颜色的涂层、带内孔……要求，只要有要求及样品、CAD图，即可实现成型加工。

surgical drill

Products Description：

Application domain:  for implantology

Material:  Ultra high rust-proof and high wear-resistant stainless steel，ceramic

    LZQ is an OEM factory for all kinds of dental implant drills, such as Guide Drill , Profile Drill, Parallel Pin, Drill Key, Lance Drill , Kirschner Wires, etc. We can also produce a whole kit of tools for customers’ surgical cases.

    The cutting edge can be produced with different materials (ceramic , superhigh anti-rust and high wear resistant stainless steel (AA), Ti, Ti alloy, generally anti-rust and high wear resistant stainless steel (A) ... series)

  Hollow core inner hole process grade (independent of material grade & edge process grade):

①AA grade:  raw material with hole + pure mirrow grinding of hollow core inner hole (hollow core inner hole ▼▼▼▼  &R0.01) (AAA) (high cost, not commonly used)

② AA grade:  raw material with holes, CFDA standard hollow core inner hole (AA) (relatively high cost, not commonly used)

③ Electrical discharge machining (EDM) process AA & A grade material + hollow core inner hole grinding (hollow core inner hole grinding grade ▼▼& ▼▼▼▼Different cost for different grade) (A&AA) (high cost, not commonly used)

④ Deep hole drilling AA&A grade material hollow core inner hole (limited by the ratio of the inner hole diameter & hole depth, conventional inner hole diameter x hole depth  (30~40) times approximately) (B) (low cost, but requires batch processing)

⑤ Electrical discharge machining (EDM) processing AA & A grade raw material hollow core inner hole, the inner hole is relatively rough (C) (low cost, regular stock)
