钻头

可依不同品牌、不同类型的植体形式、形状、结构等，高精密研磨成型对应的、匹配相关的不同类型、形式、形状、结构的钻头、工具等等。

可用陶瓷、钨钢、超高防锈高耐磨高硬度不锈钢（AA）、钛、钛合金等材料超精超硬研磨成型。

必要可带穿透&不穿透，不同等级加工的中空、空芯内孔加工。

不同颜色之涂层（黑色&黄色为主）,及不同程度的亚光/亮光处理。

可依要求生产不同刃部材料类型（陶瓷类、钨钢类、超高防锈高级品不锈钢类(AA)、

钛及钛合金类、常规标准防锈高耐磨不锈钢(A)......等系列）

刃部材料类型:

1.超高防锈不锈钢类(AA)(HRC54°±2°断面)(常规常备)

2.常规标准防锈高耐磨不锈钢类(A)(HRC45°~64°断面)

3.钛及钛合金类(HRC35°~42°)系列.

4.陶瓷类(HRA85°~94°)系列, (HRC67°~84°)系列.

5.钨钢类(HRA81°~94°)系列, (HRC60°~84°)系列.

※ 刃部加工等级：

AAA级:  CNC超硬砂轮,镜面研磨任意形状之刃口,同心度,跳动,圆柱度≤0.003mm(3μm),可任意的刃口锋利程度。

AA级:   CNC超硬砂轮,精研磨任意形状之刃口,同心度,跳动,圆柱度≤0.008mm(8μm),可任意的刃口锋利程度。

A级 :   CNC超硬砂轮,一般研磨任意形状之刃口同心度,跳动,圆柱度≤0.012mm(12μm),可任意的刃口锋利程度。

B级 :  CNC 车削加工+热处理+抛光处理，较差的刃口锋利性,同心度,跳动,圆柱度（0.10~0.20mm）（100/μm~200/μm）

Medical tools and parts series (Dril)

Corresponding and matching drills and tools of different types, forms, shapes, structures can be high precisely ground to mold according to different brands and different types of implants forms, shapes, structures, etc.

It can be produced by ultra-precision superhard grinding to mold of ceramic,tungsten steel,superhigh rust-proof high wear-resistant high-hardness stainless steel (AA), titanium, titanium alloys and other materials.

With or without penetration, hollow & hollow core inner hole process with different grades.

Different colors of coating (mostly Black & Yellow)Different degrees of Matt/Shiny treatment

The cutting edge can be produced with different materials (ceramic, carbide, superhigh anti-rust and high wear resistant stainless steel (AA), Ti, Ti alloy, generally anti-rust and high wear resistant stainless steel (A) ... series)

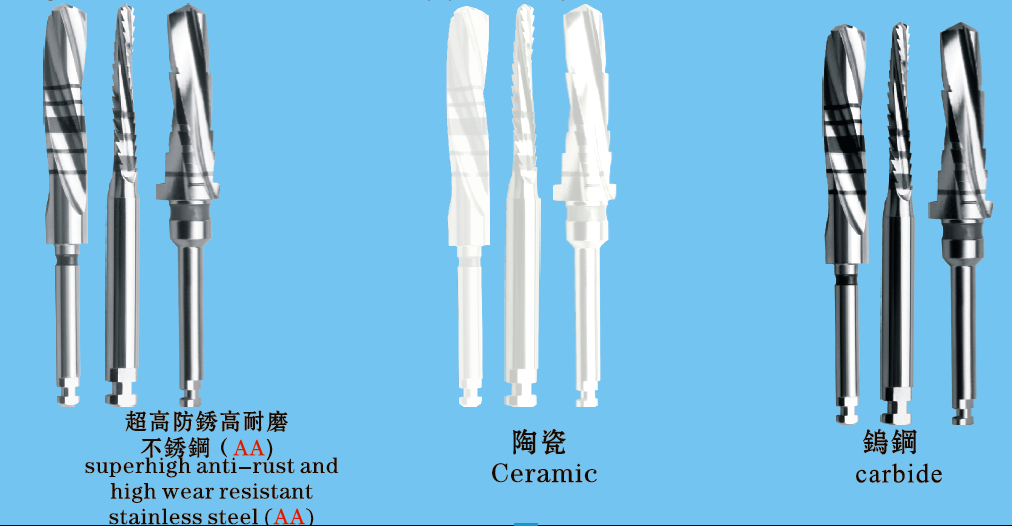

Material of cutting edge:

1. ultra-high anti-rust high wear-resistant stainless steel(AA)(HRC54°±2°Section)(regular stock)

2. general anti-rust high wear-resistant stainless steel(A)(HRC45°~64°Section) series

3. Titanium and Titanium alloy (HRC35°~42°) series

4. Ceramic（HRA85°~94°)series,（HRC67°~84°) series

5. Carbide（HRA81°~94°) series,（HRC60°~84°) series

※ Cutting edge machining grades:

Class AAA: CNC super hard grinding wheel, mirror surface grinding for any shape of cutting edge.Concentricity, runout, cylindricity≤0.003mm(3μm),any sharpness of cutting edge.

Class AA:  CNC super hard grinding wheel, finish grinding  for any shape of cutting edge.Concentricity, runout, cylindricity ≤0.008mm(8μm),any sharpness of cutting edge.

Class A:   CNC super hard grinding wheel, general grinding for any shape of cutting edge.Concentricity, runout, cylindricity≤0.012mm(12μm),any sharpness of cutting edge.

Class B:   CNC lathe work + heat treatment + polishing treatment, worse sharpness of cutting edge.Concentricity, runout, cylindricity（0.10~0.20mm）（100/μm~200/μm).
