金刚石钻头

图片及说明为本厂所有，

无良抄袭下载翻版必究！

专业特殊、非标、异型、新产品、任意种类、形状、公差的超硬加工。

如有类似，可FAX地址，来电索取图片中的样品及相关样本资料供参考（只限小金额）

常年備存原材料、半成品、成品 2000萬 ~ 3000萬RMB周转的在庫品，依圖依樣現生產，具有極強的性價比……欢迎实地指导。

其它尺寸规格及特殊微小径、成型复合刀具可依图纸或样品加工

可生产直刃、斜刃、螺旋刃等,全精研磨加工。

亦可批量生产极超微粒钻石钨钢的中心钻、倒角钻、成型钻

极超微粒钻石钨钢刀具系列（HSC）高硬度用超硬钻头

整体极超微粒钻石钨钢高硬度用超硬钻头 (钻、铰钻头）

加工实例：φ8.50刃径(乳化液)、SKD11（HRC62°）、转速1600r/min、 f≤199mm/min,钻孔深度≤2.5*φD(刃径),加工后工件精度≥h9，

表面粗糙度Ra1.6以上

超硬小径：刃径φD（φ0.10~φ2.00mm)适用于HRC≤62°淬火钢及各类高硬度材料、 复合材料的加工,钻孔深度≤6*φD(刃径)。

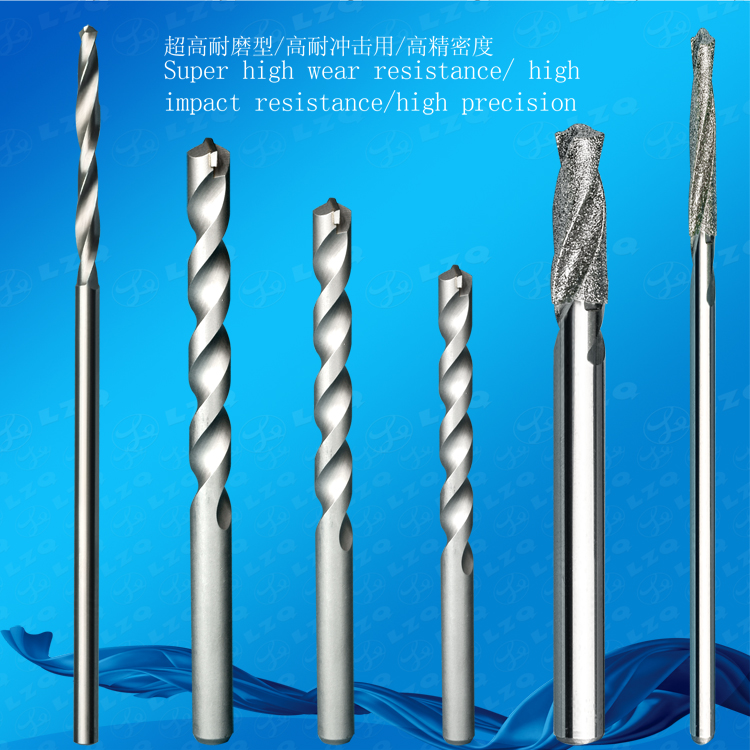

Diamond drill bit

Super-hard processing of professional, special, non-standard, special shaped and new products with any kind, any shape and tolerance.

※If you have any similar inquiry, please fax us your address or call us to get samples in the photos and related catalogue for your reference (only a small amount is allowed).

※We keep around RMB 20～3 0Million turnover stock articles such as raw material ,semi-products, finished products in ordinary year , we are capable to produce according to drawing or sample provided by customer, so as to present you a favorable cost-performance ratio…Welcome to visit our factory。

(Super-hard drill bits for high hardness application)

For other size specification and special micro-diameter, forming compound tooling, we can process according to drawings or samples.

Machining case: φ8.50 mill diameter (emulsified liquid), SKD11（HRC62°）,rotation speed 1600r/min, f≤199mm/min,

depth of drilled hole≤2.5*φD(mill Dia.), Precision of processed work piece ≥h9, surface finish more than Ra1.6

Extra hard small diameter: mill Dia. φD （φ0.10-φ2.00mm）, applicable for machining of quenched steel of HRC≤62° and various high hard materials, compound materials, the depth of drilled hole ≤6*φD（mill Dia.）
